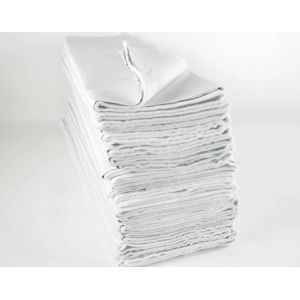

FIREFLY Titan Lite Horizontal 90:60 is a lightweight flexible fire barrier designed to provide fire compartmentation of larger concealed spaces and voids within buildings, offering 90 minutes Integrity and 60 minutes Insulation. A 3-layer system to offer the highest horizontal performance in the FIREFLY range of barriers.

Use Areas

Used primarily in roof voids and lofts to achieve fire-rated compartmentation lines throughout a building.

Extensively used in social housing, care homes and

healthcare, separating accommodation and living spaces.

Also used in larger areas within industrial, warehousing, food processing, data centres and offices to create required compartmentation zones.

Construction

FIREFLY Titan Lite Horizontal 90:60 is manufactured using layers of aluminium, woven and nonwoven glass fibre, specially treated with a proprietary coated to greatly increase fire resistance. Product is supplied to be installed as a 3-layer system.

Key Benefits

• FIREFLY Titan Lite Horizontal 90:60 provides a combined 90 minutes Integrity and 60 minutes Insulation
• Maintains fire-rated compartmentation lines through roof voids and difficult to access areas where flexibility is an advantage.
• A 3-layer installation system to achieve the highest levels of performance within the FIREFLY range.
• Lightweight, flexible, easy to handle and cut.
• Installer-friendly fire barrier system.
• Fully tested to BS476 and independently certified by IFCC/Kiwa.
• FIREFLY Titan Lite Horizontal 90:60 is supported by a full range of FIREFLY ancillary products (stainless steel staples, sealants, fixing, supports) to provide the ability to install a fully tested system.

Description

Lightweight flexible fire barrier – combined Integrity and Insulation

Certification

Third party certified by IFCC/Kiwa. Certificate number: IFCC 1463

Application

Horizontal use only (see Titan Lite 120:60 for alternative) – 3-layer staggered system

Properties

Description: Non-toxic, user-friendly, flexible, durable. Easy to manipulate and shape

Coating: Chemical treatment to optimise thermal properties and help prevent fibre migration

Min Thickness: 18mm

Specifications

Exceeds 90 minutes Integrity and 60 minutes Insulation when tested to BS 476 parts 20/22:1987

Assessment IFCC

Fields of Application covering extended drops, penetrations, ceiling systems, widths and installation requirements

Classifications

Tested to BS 476 parts 6 and 7 – Pass (propagation and surface spread of flame)

Dimensions & Packaging

Width: 127cm

Roll Length: 6 linear metres

Roll Area: 7.62 sqm

Packed: Concertinaed and individually wrapped in polythene

Weight: 4.2kg/m2 minimum

Product Data Sheet Links

FIREFLY Titan Lite Horizontal Data Sheet

FIREFLY Titan Lite Horizontal Material Safety Data Sheet

FIREFLY Titan Lite Zeus Horizontal IFC Certification

FIREFLY Titan Lite Horizontal Product Summary

FIREFLY Titan Lite Horizontal Ancillaries & Fixings
