System Specification

Construction

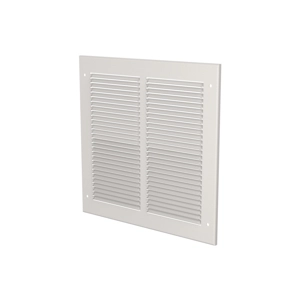

Manufactured from 20swg mild steel with pre-set angled vanes at a 30º downward deflection and 8.5mm pitch. Vanes are horizontal and allow bidirectional airflow

Size
Cover Grilles can be supplied in a wide range of sizes to suit the intumescent dampers. Sizes from 100 x 100mm up to 600 x 600mm in 50mm increments, in either configuration, offer great flexibility when selecting grille sizes

Material

Pressed steel and aluminium options available

Application
Suitable for walls, doors or end of ducts. Weather louvre options available for external applications. Note: Not recommended for external wall applications or high levels of moisture. Please refer to weather louvres which can be supplied as alternatives

Finish
Standard powder coat finishes are white and silver. Other colours to suit customer requirements are available. Also available as an ‘oil’ finish for customer painting. (Non-standard - charges and lead times apply)

Use with
LVV40, LVH44 + LVH20S
