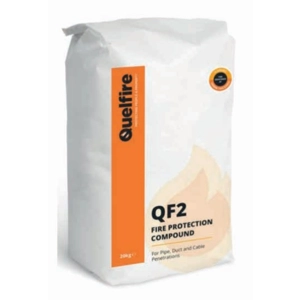

QF2 Fire Protection Compound is intended for use as a gap filling material where cables, ducts or pipework services penetrate fire compartment floors and walls. QF2 Fire Protection Compound expands slightly on curing (1%), to form a rigid smoke and gas tight seal and is also suitable for use in load bearing situations. Subsequent to installation it will accept further services penetrating the barrier without damage.

Features & Benefits

• Fire Tested to BS 476-20 and BS EN1366-3
• Up to 4 hour fire rating
• Suitable for load bearing situations
• Expands slightly on curing to form a rigid seal
• The use of extensive shuttering is not necessary
• Can be used in conjunction with other Quelfire Products such as the QWW Intuwrap & QuelCoil Intuwrap roll and QWR Fire Collars
• Ideal for service risers
• Suitable for use in concrete floors, hollow core slabs and steel profiled deck floor systems

Size: 20kg bag

Packaging & Storage

QF2 is supplied in 20kg bags which must be stored in dry conditions. Shelf life, in an unopened bag is typically 12 months.

Colour: Pink

Yield

One square metre at 100mm thickness requires approx. 4 x 20kg sacks of QF2 Fire Protection Compound.

Composition

QF2 Fire Protection Compound is a non-combustible compound manufactured from lightweight aggregates, inorganic binders and gypsum cement.

Durability

QF2 Fire Protection Compound is expected to last the lifetime of the service installation.

Product Data Sheet
QF2 Fire Protection Compound Data Sheet
QF2 Fire Protection Compound Installation Instructions
QF2 Fire Protection Compound Safety Data Sheet


Standard Installation Detail Examples
QF2-HC150-01 - Cable penetrating a hollow core floor
QF2-CF150-04 - Insulated Metal Pipe penetrating a rigid floor
QF2-CF150-08 - Plastic Pipe penetrating a rigid floor (QWW)
QF2-HC150-12 - Sleeved Gas Pipe penetrating a hollow core floor
QF2-CF150-10 - Metal Pipe penetrating a rigid floor

Waterproofing

QF2 Fire Protection Compound is not waterproof and as it is mostly gypsum based will absorb water if exposed. It can potentially be treated with a 2-part epoxy paint in order to offer some waterproofing but it must be fully dried before application and we recommend a trial is carried out before application to check compatibility and adhesion.
