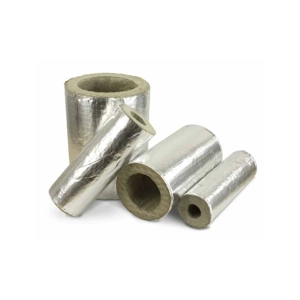

QIF Insulated Fire Sleeves prevent the spread of fire through combustible and non-combustible pipes where they penetrate fire compartment walls and floors.

Features & Benefits

• Tested to BSEN 1366-3: 2009
• Up to 4 hour fire rating
• Suitable for plasterboard partitions and concrete floors and walls
• Suitable for 15 to 160mm diameter pipes
• Can be retrofitted
• Suitable for plastic pipes
• Suitable for metal pipes
• Type X Durability
• Suitable for use in conjunction with the QuelStop Fire Batt System
• Suitable to use with Lubrizol® CPVC piping systems and materials, such as FlowGuard® pipe and fittings and BlazeMaster® fire sprinkler systems
• Maintains thermal insulation of the pipe
• Allows thermal movement of the pipe
• No additional sleeving required
• Simple and quick to install, no mechanical fixing required
• Supplied as a 300mm length and can be cut to length

Regulations

Building Regulations impose limitations on all pipes passing through fire compartment walls and floors. QIF Insulated Fire Sleeves allow pipes to meet the requirements of the Building Regulations. QIF Insulated Fire Sleeves have been tested according to BSEN 1366-3: 2009 where pipe diameters of up to 169mm have met insulation and integrity criteria for this standard for up to four hours.

Composition

The QIF Insulated Fire Sleeves consist of a foil containing insulating mineral fibre and graphite intumescent material which reacts under the influence of heat to exert pressure on the pipe as it softens to form a carbonaceous char which provides an effective insulation plug thus preventing smoke and fire passing through to the adjoining compartment. However, the removal of this insulation may result in formation of condensation on cold pipework or heat loss from hot pipes.

The QIF Insulated Fire Sleeves are intended for copper, steel and most types of plastic pipes.

Product Data Sheet
QIF Insulated Fire Sleeves Data Sheet
QIF Installation Instructions
QIF Material Safety Data Sheet (COSHH)

Standard Installation Detail Examples

QIF-FW132-01 - Plastic Pipes penetrating a flexible wall or rigid wall

QIF-FW132-02 - Metal Pipes penetrating a flexible wall or rigid wall

QIF-CF150-01 - Plastic Pipes penetrating a Concrete Floor

For further information, please call us on 02476 422200.
