Pyrostrip 500PSS Flexifin Co-extruded Smoke Seal - Pack of 3 Summary

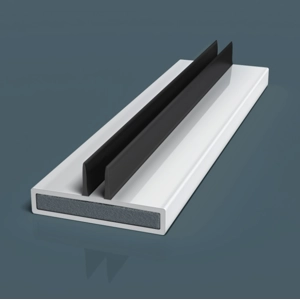

Pyrostrip 500PSS Flexifin Co-extruded Smoke Seal - Pack of 3

Intumescent fire, smoke and acoustic seal
Our co-extruded Flexifin seals provide an integrated solution to problems of fire spread, cold smoke leakage and acoustic insulation. Available in both centred and off-centred designs, Flexifin not only offers highly effective sealing but also allows doors to return to their closed position with minimum resistance.

Often preferred in certain environments to standard brush pile, these seals provide greater acoustic sealing performance and are ideally suited to hospitals, clean rooms, computer rooms or food preparation areas.

The fin blades are made from high-performance thermoplastic, fused to a rigid pvc holder in the manufacturing process, containing either our 500 or 100 intumescent material.

Fire tested to BS 476: Part 22: 1987 and smoke tested in accordance with BS 476: Part 31: 1987.

Choice of Pyrostrip intumescent materials
Standard colours – white, brown, dark brown black and slate grey.
Non-standard colours available on request
Standard lengths – 2100mm
Non-standard lengths up to 3m available on request
Twin Fin available in 5mm blade height
Proven fire resistance from 30 – 60 minutes
Excellent acoustic sealing performance
Easy to wipe clean and keep bacteria free for use in hospitals, surgeries, clean areas etc.

Technical

Pyrostrip Flexifin Co-extruded seals, sizes up to 20mm are supplied with twin fins that are thermally fused to the PVC sheath. Sizes over 20mm are supplied with a fin insert. They can be supplied in the following sizes, colours and finishes.

Standard Sizes:

10 x 4mm, 15 x 4mm, 20 x 4mm, 25 x 4mm, 30 x 4mm, 38 x 4mm

Standard Lengths:

2100mm.

Non Standard Lengths:

Non standard lengths up to 3m can be produced. Please contact our Sales Office.

Standard Colours :

White, Brown, Dark Brown, Black and Slate Grey.

Non Standard Colours:

A wide range of non standard colours can be produced. Please contact our Sales Office.

Fin Seal:

Twin Fin available in blade height of 5mm.

Choice of Intumescent core:

500 Graphite dark grey or 100 Palusol based white core.

Data Sheet
Product Data Sheet

The above information is based on current test data, health and safety information and application instructions supplied by our suppliers and manufacturers of the products. It is supplied for guidance and to the best of our knowledge is true and accurate. Customers should satisfy themselves to the suitability of the products in its intended use and no guarantee is given or implied as the conditions of actual use are beyond our control. If in doubt the customer should consult the designer of the project or the local building control.

Fire Stopping Shop, disclaim any liability for loss, damage or other expense which may arise from the use of this information, data or products refereed to and reserve the right to amend or change any details without notice. This statement does not affect your statuary rights.
