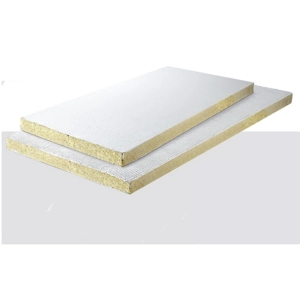

Protecta FR Board 1200x600x50mm
ASF006
Protecta FR Board 1200x600x50mm
1200x600x50mm - This FR Board Is Coated Both Sides
FR Board is designed to prevent the spread of fire and smoke through openings in fire rated walls and floors where openings are formed to allow the installation of multiple building services. FR Board will also maintain the acoustic designed performance in fire rated walls and floors.
FR Board consists of a high density, stone wool core which is over-coated with FR Coating. The top coating provides additional protection by significantly reducing the permeability of the stone wool core and prevents the passage of hot gases, thus reducing the temperature rise on the unexposed side and reducing heat conduction through the building services.
FR Board is available with top coating on one or two sides, selected on the basis of installation considerations and fire resistance. On site, FR Board must be used together with FR Acrylic for sealing around building services and the surrounding construction.
Key Features
- Classified for all types of constructions with a wide range of building
- Classified for linear seals between multiple different substrates; ideal
- May be used as internal partition walls (see separate data sheets)
- Simple and very quick to install
- Resists UV, humidity and frost (once cured)
- Easy to retrofit additional building services after installation
- Combinable with Protecta
- FR Flexi Board - will accommodate movements during fire and movements in the construction it has been fitted within
- Suitable for most surfaces, including concrete, bricks, masonry, steel,
- May be used in unlimited lengths in walls with heights up to 1200 mm
- May be installed in drywalls with or without framing around the opening
- Halogen free with added fungicides
- Protecta FR Board can be supplied with a smooth surface
- Precautions are required to be taken to prevent a person stepping
FR Board Technical Data Sheet
FR Board Installation Instructions
FR Board Safety Data Sheet
FR Board Technical Data Sheet As Partition Wall
Technical Handbook Passive Fire Protection - Linear Seals
Technical Handbook Passive Fire Protection - Timber
FR Board Environmental Product Declaration 1-S
Double Protecta FR Board system in drywall
Double Protecta FR Board system in masonry or concrete walls
All orders are usually despatched within 24 hours of receiving cleared payment (Mon–Fri).
The above information is based on current test data, health and safety information and application instructions supplied by our suppliers and manufacturers of the products. It is supplied for guidance and to the best of our knowledge is true and accurate. Customers should satisfy themselves to the suitability of the products in its intended use and no guarantee is given or implied as the conditions of actual use are beyond our control. If in doubt the customer should consult the designer of the project or the local building control.
Fire Stopping Shop, disclaim any liability for loss, damage or other expense which may arise from the use of this information, data or products refereed to and reserve the right to amend or change any details without notice. This statement does not affect your statuary rights.
