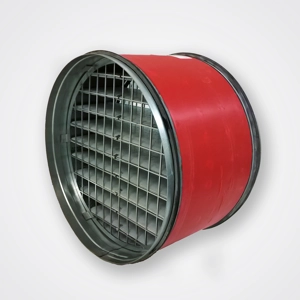

Protecta FR Damper are designed to fire seal ventilation ducts passing through fire rated walls and floors. The product consists of a damper that closes if a fire starts with use of a heat expanding graphite material, which are placed on steel fins inside the damper, and is secured with local surrounding stonewool on one or both sides of the damper.
Key Features
Maintenance free and no electrical connections necessary.
The same damper can be installed in both walls and floors.
It seals against penetration of fire and smoke both surrounding and inside the ventilation duct.
Closes in the area where the fire is located but not elsewhere so the ventilation system can be used to extract smoke from areas that are not on fire.
Keeps the temperature in the duct network lower than 120°C and will therefore protect fans and sensitive units in the system.
Insulation of ducts is not necessary.
Service life of more than 50 years; the damper will last the same life cycle as the ventilation system.
The dampers are designed to fit standard ducting equipment so that the ducting system installer can easily fit the dampers.
The dampers are attached to the inside of the ducts, giving the benefit of space saving.
An aperture can include several dampers and in addition technical services such as cables, cable trays and pipes.
The dampers are only 15 cm long and bends can be connected right behind the fire seal (can also be special ordered in other sizes). The damper can be attached to a vent on one side.
Standard Sizes of FR Dampers
The length of the dampers in the table are 150mm plus overlap/connection for the ventilation ducts. Longer and shorter dampers can be manufactured on request.
Protecta FR Damper for rectangular ducts are manufactured to precise measurements, and are not standard goods.
Double Protecta FR Board system in drywall
Double Protecta FR Board system in masonry or concrete walls
All orders are usually despatched within 24 hours of receiving cleared payment (Mon–Fri).
The above information is based on current test data, health and safety information and application instructions supplied by our suppliers and manufacturers of the products. It is supplied for guidance and to the best of our knowledge is true and accurate. Customers should satisfy themselves to the suitability of the products in its intended use and no guarantee is given or implied as the conditions of actual use are beyond our control. If in doubt the customer should consult the designer of the project or the local building control.
Fire Stopping Shop, disclaim any liability for loss, damage or other expense which may arise from the use of this information, data or products refereed to and reserve the right to amend or change any details without notice. This statement does not affect your statuary rights.
Brand:
Protecta
weight:
10000.0
Product Condition:
New
