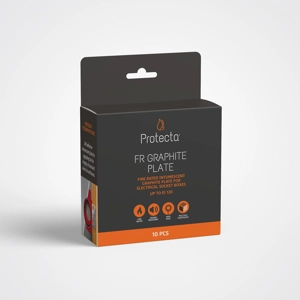

FR Graphite Plate is a preformed self-adhesive intumescent plate used to reinstate the fire resistance performance of flexible wall constructions when punctured with plastic wall boxes. It is used where the walls have been provided with apertures for the penetration of conduits and cables into socket boxes, on one or both sides of the wall.

FR Graphite Plate immediately reacts to fire through the heat and automatically expands and fills up the box, preventing fire and smoke from passing through. Fitting FR Graphite Plate will reinstate the fire resistance performance of flexible wall constructions for at least 60 minutes. It also prevents the passage of smoke and fire through electrical conduits between socket boxes.

FR Graphite Plate is available in both circular and square shaped plates.

Benefits

• Wall boxes can be fitted back to back
• Boxes can be fitted to steel and timber noggins
• Up to 120 minutes of both integrity and insulation resistance
• Quick and easy to install
• For flexible walls with a minimum thickness of 75 mm
• Can be used on insulated and uninsulated walls
• Tested with a wide range of cables and conduits interconnected
• between boxes
• Tested with empty conduits between boxes for future cable transits
• High end fast expanding patented graphite material
• No emissions - environmentally and user friendly
• Unlimited storage time (under correct conditions)
• 50 years working life

  Data Sheet
  FR Graphite Technical Data Sheet
  FR Graphite Safety Data Sheet
  FR Graphite Plate UKTA Certificate
