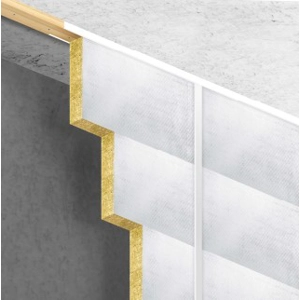

Protecta FR Board 80mm 2-S Smooth
Protecta® FR Board is ideal as a fast assembly non-load bearing partition wall system where the objective is to prevent spread of fire and smoke by dividing areas into separate fire compartments. Protecta® FR Board will also provide acoustic sound insulation as separating walls.
Protecta® FR Board can be used as a stand-alone partition wall in areas where access is limited e.g. lofts and technical rooms, or as an insulation inside plasterboard or wood based particle board walls, increasing the fire classification with reduced wall thickness.
Protecta® FR Board consists of a high density stone wool core, over-coated with Protecta® FR Coating. The top coating provides additional protection by significantly reducing the permeability of the stone wool core and prevents the passage of hot gases, thus reducing the temperature rise on the unexposed side and reducing heat conduction through the wall.
The above information is based on current test data, health and safety information and application instructions supplied by the manufacturer of the products. It is supplied for guidance and to the best of our knowledge is true and accurate. Customers should satisfy themselves to the suitability of the products in its intended use and no guarantee is given or implied as the conditions of actual use are beyond our control. If in doubt the customer should consult the designer of the project or the local building control. We would recommend that intumescent coatings are carried out by an approved applicator.
Properties & Precautions
- Protecta® FR Board as a stand-alone partition wall is ideal in areas with restricted access, such as fire compartments in lofts, fire rated walls in technical rooms, separating culverts into fire zones, and similar
- Protecta® FR Board as an insulation inside drywalls is ideal to gain extra floor space through maximizing fire performance with limited wall thickness (please refer to the ETA for details)
- Protecta® FR Board as a stand-alone partition wall can be installed with access from only one side
- Simple and very quick to install using timber studs, and in some cases there is no need for head and base tracks, or outer studs
- Maximum allowed distance between studs is 1.32 m, reducing labour and material costs
- May be used in unlimited lengths, with heights up to 4 m, against a variety of abutting constructions
- Protecta® FR Board resists UV, humidity and frost, tested to durability class Y1
- Very easy to retrofit after installation with simple tools such as knife and saw
- Halogen free with added fungicides
- Protecta® FR Board can be supplied with a smooth surface
- Protecta® FR Board as a stand-alone partition wall is not suitable in public areas
Product Data Sheet Links
Technical Data Sheet
Declaration of Perormance - DoP
European Technical Assessment - ETA
