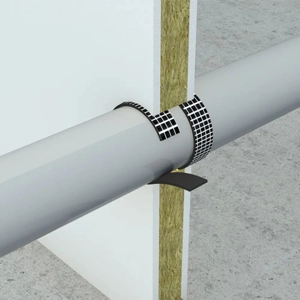

PFC Corofil Universal Pipe Wrap is an intumescent strip which is installed around combustible pipes to form a penetration seal used to reinstate the fire resistance performance of wall and floor constructions where they have been provided with apertures for the penetration of combustible pipe services.

Tested to EN1366-3, Universal Pipe Wrap fire resistance periods of up to 120 minutes for differing services and wall/floor constructions. In the event of a fire the intumescent expands on heating, providing a closure of combustible pipes to prevent the passage of fire between compartments.

Universal Pipe Wrap is manufactured as a roll of intumescent 25m x 40mm x 2mm. It has a removable paper on one face, covering an adhesive strip which adheres to each layer as it is wrapped around the pipe. Each roll is supplied in an individual box.

Key points:

• One product for multiple applications
• Fits pipe sizes from 32 – 250mm diameter
• Suitable for use on combustible and metallic pipes, with insulation
• Suitable for use with PFC Corofil Coated Panel system
• Suitable for use with plasterboard partitions
• No mechanical fixings required
• Third party certified




You can install Universal Pipe Wrap at the soffit and upper surface of floors and on both faces of walls, depending on the application and by applying a number of wraps to reach the required thickness.

Universal Pipe wrap can be used with PFC Corofil Acoustic Intumescent Sealant (see technical data sheet TDSCAIS for details) to seal the gap between the combustible pipe and the aperture.

Data Sheets

Manufacturer Data Sheet
Safety Data Sheet
Certification 01172-CPR
