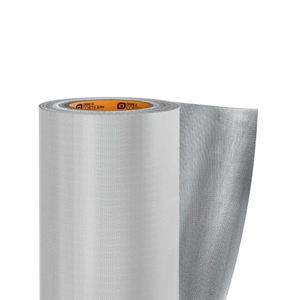

OBEX CORTEX 0230FR Class A2 VCL membrane has excellent air and vapour-tightness properties which make it ideally suited to improving the airtightness, moisture management and energy efficiency of buildings.

It is installed on the warm side of the insulation it provides an air and vapour-tight barrier, preventing warm air and moisture from passing through the external wall and forming interstitial or surface condensation within the cavity.

The VCL Membrane is normally bonded to the steel framing with OBEX CORTEX double-sided tape before the plasterboard layer is applied.  Applications may vary depending on the construction build up.  The OBEX technical team can help with any application queries.

The membrane is installed using the CORTEX 0825 installation kit which includes 2 rolls of CORTEX 0824FR double-sided tape and 6 rolls of single sided CORTEX 0823FR UV façade tape.

Typical Uses

Class A2 VCL membrane for use as an internal Vapour Control Layer.
3rd Party Certified
Class A
EI60 Fire Test Component
EI120 Fire Test Component
EN 1928 - EN 13984


Product Specs

Width
1200mm

Length
50m

Thickness
0.2mm

Colour
Silver face



Technical Specs

Harmonised Standard

EN 13984

3rd Party Certification

KIWA - BAW-22-246-P-A-UK

Fire Classification | EN 13501-1

A2-s1,d0

Watertightness | EN 1928

Pass – 2 kPa for 24 hours

Sd value | EN 1931

2575.35m

Tensile Strength | EN 12311-2

Longitudinal – 1362 N/50mm, Transversel - 1349 N/50mm


Installation Sheet

OBEX CORTEX 0230FR VCL Kiwa Cert
OBEX CORTEX 0230FR VCL Membrane Installation Guide
OBEX CORTEX 0230FR VCL - Vapour Control Layer Class A2 TDS
OBEX CORTEX 0230FR VCL - Vapour Control Layer Class A2 SDS
OBEX CORTEX 0230FR VCL - Vapour Control Layer Class A2 DoP
