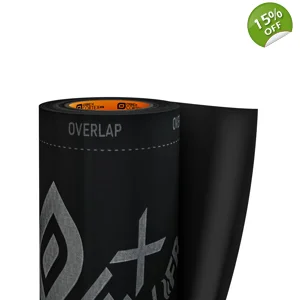

OBEX CORTEX 0221FR Class A2-s1,d0 Breather Membrane features water resistant yet breathable technology, which facilitates the escape of moisture and the prevention of condensation within the external wall construction. It can be applied to many surfaces including sheathing board, concrete and insulation.

OBEX CORTEX 0221FR is a black membrane, so makes for an excellent backdrop behind perforated or open jointed cladding.

The membrane is installed using the OBEX CORTEX 0825 Installation Kit which includes 2 rolls of 0824FR double-sided tape and 6 rolls of single sided 0823FR UV façade tape.


Typical Uses

Class A2 external breather membrane for use in facades and other construction applications.
3rd Party Certified
12 Months Exposure
Class A
EI60 Certified EI60 Fire Test Component
Breathable
W2 - EN 13859-2


Product Specs

Width
1200mm

Length
50m

Thickness
0.2mm

Colour
Black


Technical Specs

Harmonised Standard
EN 13859-2

Fire Classification | EN 13501-1
A2-s1,d0

Watertightness | EN 1928
W2

Sd Value | EN ISO 12572
0.03m

Tensile Strength | EN 12311-2
Longitudinal – 3828 N/50mm, Transversal - 1992 N/50mm

3rd Party Approved
KIWA Approval – BAW-22-244-P-A-UK

UV Resistance
12 Months UV Resistance


Installation Sheets

OBEX CORTEX 0221FR 3rd Party KIWA BDA Certificate
OBEX CORTEX 0221FR Breather Membrane W2 Class A1 Installation Guide
OBEX CORTEX 0221FR Breather Membrane W2 Class A1 TDS
OBEX CORTEX 0221FR Breather Membrane W2 Class A1 SDS
OBEX CORTEX 0221FR Breather Membrane W2 Class A1 DoP


Installation Guide Video
