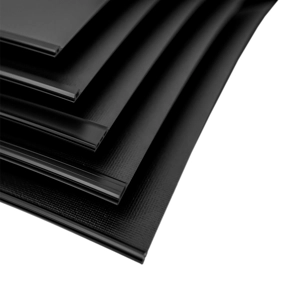

OBEX CORTEX 0500FR Class B Interface Sealing Membrane with Gasket is a fire classified EPDM-alternative membrane which is used to create weather and airtight seals around openings such as windows, doors and curtain walling on construction projects.

This membrane achieves a fire classification of Class B-s3,d0 when tested according to EN 13501-1 and is also fully BBA approved for façade applications.

This membrane is manufactured with a gasket on one edge which enables the membrane to be securely attached directly into the channel of the window frame, or into the OBEX CORTEX Gasket Carrier.

Our range of gaskets are suitable for most widely used window systems such as Schuco, Reynaers, Aluprof, Senior and many others.


Typical Uses
Fire-classified weather & airtight seals around windows, doors and other unitised systems
3rd Party Certified
Class B
EN 1928 - EN 13984

Product Specs
Widths
50mm - 700mm

Length
20m

Thickness
0.5mm


Technical Specs
Fire Classification | EN 13501-1
B-s3,d0

Watertightness | EN 1928
Pass – 2 kPa for 24 hours

Sd value | EN 1931
12m

Tensile Strength | EN 12311-2
Longitudinal – 2490 N/50mm, Transverse – 2079 N/50mm

Air Tightness | EN 12114
<0.1m³

3rd Party Approved
BBA Approval – No. 17/5396


Data Sheets

Agrement Certificate
