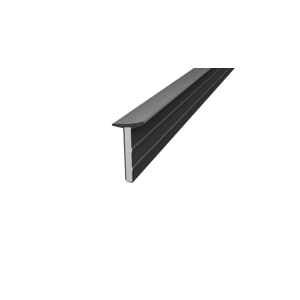

Pyroplex® FG30 30 Minute Glazing Systems offer a range of solutions for glazing vision panels in timber fire doors.They are fully flexible and supplied in slimline reels for storage and to minimise wastage. They are also approved for use on slimline economical beads.
Pyroplex® FG30 30 Minute Glazing Systems are tested to BS 476: Part 22: 1987 BS EN1634:1 and other international standards. They are compliant with the requirements of CERTIFIRE TS25.

PRODUCT FEATURES

Supplied on continuous reels for dispensing applications, ease of storage and
to reduce wastage in cut-offs.
Supplied with a high performance self-adhesive backing for ease of
application and installation.
Pyroplex® intumescent material is totally unaffected by water, robust,
‘non-flaking’ and difficult to tear.

FIELD OF APPLICATION

Pyroplex® FG30 30 Minute Glazing Systems have been specifically designed for
use in glazed apertures in fire resisting timber doors and steel doors.

Technical Specification

Application
Glazed apertures in fire
resisting doors
Fixing
Self-adhesive
Performance
Fire tested to BS 476-20:22, BS EN 1634-1
& BS EN 1363-1
Certifire CF348
Material
Graphite based intumescent
Length
150m coil
Colours
Black (BK)

Data Sheets

Manufacturer Data Sheet

Norseal Data Sheet

Certification CF 348
