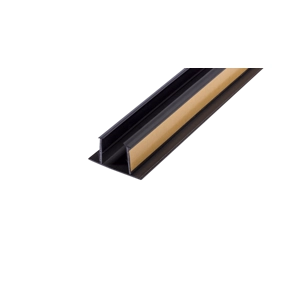

The Pyroplex® PFG1HR Fire Glazing System – 1 Hour has been specifically designed and developed for use within fire resistant glazed apertures. The glazing seal incorporates two integral glazing fins to accommodate tolerance variations in both glass and door cores, whilst maintaining sufficient compression of the glass and maintaining a low visual sightline.The three part system consists of 2 glazing seals and 1 aperture liner. The system has been tested to the requirements of BS476: Part 22:1987: clause(s) 6/7, tested on uninsulated and insulated glass types, including radiation glasses.
The Pyroplex® FG1HR Fire Glazing System – 1 Hour is accredited and approved under the CERTIFIRE Scheme TS25 - Fire Resistant Glass, Glazing Systems and Materials.
Certifire Certificate No. CF5287

PRODUCT FEATURES

Self adhesive backing for ease of application.
Low profile sightlines.
Printed for full identification and traceability.

FIELD OF APPLICATION

Pyroplex® PFG1HR Fire Glazing System – 1 Hour has been specifically designed for
use in the following applications:

Glazed apertures in timber fire resisting doors.
Large aspect ratios for landscape and portrait panels.
Suitable for use in conjunction with uninsulated and fullyinsulated fire
resistant glasses.

Technical Specification

Application
Glazed apertures in fire resisting doors
Fixing
Self-adhesive
Performance
Fire tested to BS 476-22
Certifire CF5287
Material
Graphite-based intumescent
Glass thickness (mm)
6, 15, 23
Length (mm)
2100
Colour
Black

Data Sheets

Manufacturer Data Sheet

Norseal Data Sheet

Certification CF 5287
