Pyroplex® Flipper range provides fire, smoke and acoustic seals for timber door edges and frames. The flippers are thermally fused to the box section to ensure that under normal conditions of use they will not delaminate. This technology ensures improved performance and also the appearance of the seal. The Integral Flipper range adds added security with an integral flipper that will remain uninterrupted when used with ironmongery.
Pyroplex® Flipper range are supplied in 2.1m lengths as standard and are quick and easy to fit with no special tools required. The Flipper range provides fire, smoke and acoustic properties which have been tested to BS 476: Part 22, BS EN 1634-3: 2004 and BS EN ISO 10140-2: 2010.
Certifire Certificate No. CF822.


PRODUCT FEATURES

30 and 60 minute systems available.
Provides fire, smoke and acoustic resistance.

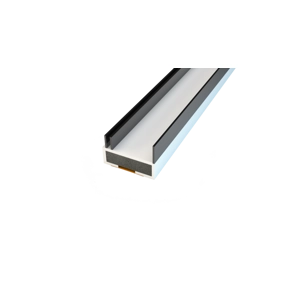

Integral flipper options available [Triple Flipper and Side Flipper].
Improved aesthetics – the profile is more streamline.
Increased tamper resistance – previously it has been easy to tear the flippers
from the profile, a particular problem in educational establishments.
Durability – flipper will not remove from seal, cycle tested to 100,000 cycles.
Supplied with a self-adhesive backer for ease of application.
Identification on each product ensures full traceability.
Available in a range of colours – Black, White, Brown, Grey, Red and Cream.

FIELD OF APPLICATION

Pyroplex® Flipper range have been specifically designed for use in the following
applications:
Rebates in timber door leafs or door frames.
Use on acoustic doorsets.
Use on single and double action leaf doors.
Use on latched and unlatched doors.
New build and retro-fit applications.

Technical Specification

Application
Fire and smoke resisting timber
doorsets - edges and frames
Fixing
Self adhesive, friction fit
Performance
Fire tested to BS 476-22 & BS EN 1634-1
Smoke tested to BS 476-31.1 & BS EN 1634-3
Certifire CF822
Material
Intercalated Graphite
Length (mm)
2100
Sizes (mm)
20x4
Colours
Grey (G) / Other colours on application

Data Sheets

Manufacturer Data Sheet

Norseal Data Sheet

Fitting Guide

Certification CF 822

The above information is based on current test data, health and safety information and application instructions supplied by our suppliers and manufacturers of the products. It is supplied for guidance and to the best of our knowledge is true and accurate. Customers should satisfy themselves to the suitability of the products in its intended use and no guarantee is given or implied as the conditions of actual use are beyond our control. If in doubt the customer should consult the designer of the project or the local building control.

Fire Stopping Shop, disclaim any liability for loss, damage or other expense which may arise from the use of this information, data or products refereed to and reserve the right to amend or change any details without notice. This statement does not affect your statuary rights.
