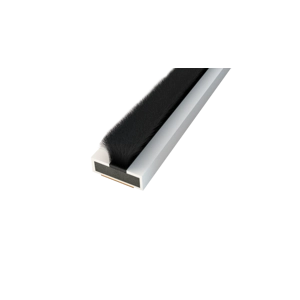

Pyroplex® Pile range of Rigid Box Seals provide a traditional fire, smoke and acoustic seal for fire rated timber door edges and frames. The range includes a selection of sizes including the wider more traditional solutions. They are suitable for rebates in single and double action, single or double doors. Pyroplex® Rigid Box Seals are ideal for new build applications.
Pyroplex® Pile range of Rigid Box Seals are supplied in 2.1m lengths as standard, and are quick and easy to fit with no special tools required. The Pile range provides fire, smoke and acoustic seals which have been tested to BS 476: Part 22, BS EN 1634-3: 2004 and BS EN ISO 10140-2: 2010.
Certifire Certificate No. CF355.

PRODUCT FEATURES

30, 60 and 90 minute systems available.
Provided with rigid box outer for added durability.
Supplied with a self-adhesive backer for ease of application.
Cut to 2.1m as standard.
Identification on each product ensures full traceability.
Available in a range of colours - Black, White, Brown, Grey, Red and Cream.

FIELD OF APPLICATION

Pyroplex® Pile range of Rigid Box Seals have been specifically designed for use
in the following applications:
Rebates in timber door leafs or door frames.
Use on single and double action leaf doors.
Use on latched and unlatched doors.
New build and retro-fit applications.

Technical Specification

Application
Fire and smoke resisting timber
doorsets - edges and frames
Fixing
Self adhesive, friction fit
Performance
Fire tested to BS 476-20:22 & BS EN 1634-1
Smoke tested to BS 476-31.1 & BS EN 1634-3
Certifire CF355
Material
Intercalated Graphite
Length (mm)
1050
Sizes (mm)
15x4
Colours
Brown (B) / WHITE (WHT) /Other colours on application

Data Sheets

Manufacturer Data Sheet

Norseal Data Sheet

Fitting Guide

Certification CF 355
