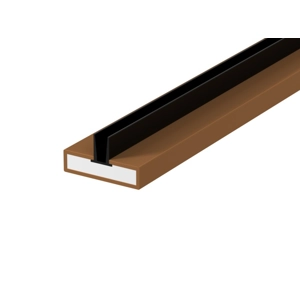

Lorient TS door seal with double elastomeric fins offers acoustic, smoke + fire protection, with the added benefit of thermal containment. Available in a choice of sizes to cover 30 and 60 minute applications, the TS seal also includes integral antimicrobial protection.
Superior acoustic performance meets the requirements of Approved Document E.
Available in a range of colours. Supplied in 2.1m lengths.
Location
Single + double leaf doors
Size
10 x 4mm - 2.1m
15 x 4mm - 2.1m
20 x 4mm - 2.1m
Standard lengths
2.1m
Other lengths to special order.
Min / Max gap size
3mm / 4mm
Finishes
Available in a range of standard colours, with black fins - to blend or contrast with the doorset as required. White fins are also available to special order (please ask for details).
Fixing
Heavy duty self-adhesive tape.
Fully Tested to:
Acoustic: BS EN ISO 10140-2: 2010
Smoke: BS 476-31.1: 1983
Fire: BS EN 1634-1: 2008
Fire: BS 476-22: 1987
Durability: 100,000 cycles
Lorient provide a range of high performance seals for Fire & Smoke Resistant Door Assemblies. Click here to view the range of seals in a simple to understand table.
