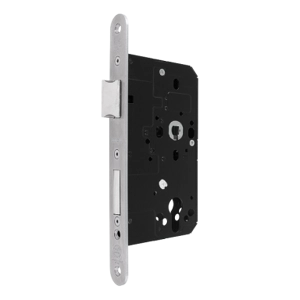

ARRONE mortice sashlock case:

Function: Latch bolt and deadbolt operation
Deadbolt projection: 21 mm, single throw
Forend/strike material: Stainless steel
Forend type: Single
CE Marked: AG0067, UKCA Marked: AG7668
- BS EN 12209: 3 | X | 8 | 1* | 0 | G | 4 | B | A | 3 | 0
Certifire approved: CF530, CE DOP: HUK0007, UKCA DOP: HUK007-UK
Testing: BS EN 1634-1. Assessed for use on 30, 60, 90 and 120 minute timber fire doors and 240 minutes steel fire doors.
Meets dimensional recommendations of BS 8300 and ADM for locks
* The AR910 series lock case has been successfully fire tested with the use of an intumescent kit. The supply and fitting of this intumescent kit is essential to the products compliance with the fire test and CE marking evidence it has gained. HOPPE takes no responsibility for any locks purchased and fitted without sufficient intumescent protection.

• Finish: F68 polished stainless steel
• Face plate finish: F68 polished stainless steel
• Keyhole: Euro profile cylinder
• Keyhole distance: 72 mm
• Shape: radiused
• Backset: 60 mm, pierced for furniture and escutcheons at 38 mm centres
• Door type: wooden door
• Fixings: Timber door
• Case size: Depth: 88 mm length: 165 mm width: 16 mm, modular
• Corner: radius corners
