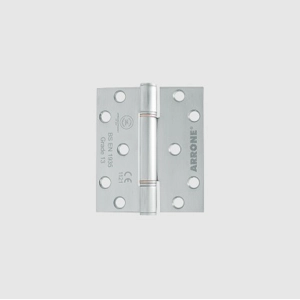

Hoppe Arrone AR8380 Grade 304 Stainless Steel Hinge
Sold as 1.5 pairs - Square Satin Stainless Steel Grade 304
Arrone Phospher bronze bearing stainless steel Grade 13 square corner butt hinge.
Material: Stainless Steel
Hinge Grade: Grade 13
Shape: Square
Unit of measure (pack size): Sold as 1.5 pairs
Door weight: Suitable for doors weighing up to 120 kg
Fixing: 30 x 304 grade stainless steel pozidrive countersunk wood screws
Testing: BS EN 1935:2002 (Classification: 4 | 7 | 6 | 1* | 1 | 4 | 0 | 13 ); BS EN 1634 Part 1. Assessed for use on 30 & 60minutes timber fire doors. (Intumescent pack must be used)
CE Marked: AC5027, UKCA Marked: AC7676
Certifire approved: CF5197, CE DOP: HUK0049, UKCA DOP: HUK0049-UK
Finish: Satin Stainless Steel
Size: 100x88x3 mm
Bearing: phosphor bronze washer
Door type: wooden door
Leaf corner: square corners
Drilling types: 5 holes ANSI template drilled, countersunk
Fixings: 30 A2 grade stainless steel wood screws pozidrive
Dimension: 100x88x3 mm
Data Sheet Links
Technical drawing
