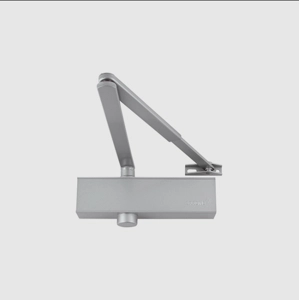

ARRONE overhead door closing device:

Power size: 2 to 4 adjustable by template

Function: Closing, latching

Cover: Slide cover

Maximum door width: 1,100 mm (Fig 1 and Fig 61), 950 mm (Fig 6)

Maximum door weight: 80 kg (Fig 1 and Fig 61), 60 kg (Fig 6 )

Arm application: Fig 1, Fig 6 and Fig 61 fixing positions

Successfully type tested for conformity to all the requirements of BS EN 1154:1997

- Door mount pull (Fig 1), transom mount push (Fig 61): 3 | 8 | 4/2 | 1* | 1 | 3

- Door mount push (Fig 6): 3 | 8 | 3 | 1* | 1 | 3

Included in a successful fire test to BS EN 1634 Part 1. Assessed for use on 30, 60 and 120 minutes timber fire doors.

CE Marked: AD0118

Certifire approved: CF295; DoP: HUK0020

Cover finish: silver

Maximum door width: 1100 mm

Shape: Trim Plate

Power size: 2 to 4

Mechanism function: Backcheck, template adjustment, closing/latching speed

Maximum door weight: 80 kg

Mechanism type: Rack & pinion

Door type: wooden door

Arm finish: silver

Fixings: Timber door

Arm application: figure 1, 6 and 61

Mechanism dimensions and fixing centres: 207x55x38.5 mm; centres 97x197x39 mm

Opening Angle: max. 105° opening

Arm type: Scissor arm, fixed joint, flat form, adjustable
