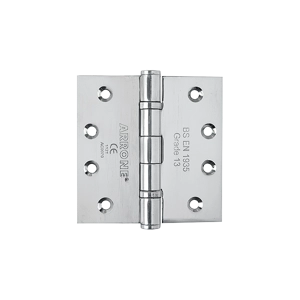

ARRONE ball bearing hinge:

• Material: Stainless steel
• Hinge Grade: Grade 13
• Shape: Square
• Unit of measure (pack size): Sold as a pair
• Door weight: Suitable for doors weighing up to 120 kg
• Fixing: 16 x stainless steel pozidrive countersunk wood screws
• Testing: BS EN 1935:2002 (Classification: 4 | 7 | 6 | 1* | 1 | 4 | 0 | 13 ); BS EN 1634-1. Assessed for use on 30 and 60 minute timber fire doors and 240 minute on steel fire doors.
• CE Marked: AC0070, UKCA Marked: AC7678
• Certifire approved: CF369, CE DOP: HUK0017, UKCA DOP: HUK0017-UK

Specifications :

Dimension : 102X102 mm
Bearing : 2 Ball Bearing Hinge
Dimensions : 102X102X3 mm
Drill : 4 Holes Template Drilled, Countersunk
Fixings : Timber Door
Leaf Corner : Square Corners
Finish : Satin Stainless Steel
Material Thickness : 3 mm
Commodity Class : Ball Bearing Hinge
Door Type : Wooden Door

Dtata Sheets

Product data sheets

The above information is based on current test data, health and safety information and application instructions supplied by our suppliers and manufacturers of the products. It is supplied for guidance and to the best of our knowledge is true and accurate. Customers should satisfy themselves to the suitability of the products in its intended use and no guarantee is given or implied as the conditions of actual use are beyond our control. If in doubt the customer should consult the designer of the project or the local building control.

Fire Stopping Shop, disclaim any liability for loss, damage or other expense which may arise from the use of this information, data or products refereed to and reserve the right to amend or change any details without notice. This statement does not affect your statuary rights.
