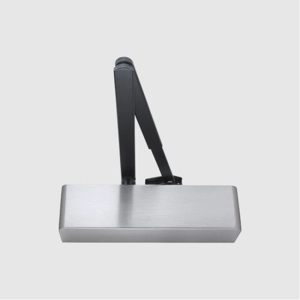

ARRONE overhead door closing device:

Power size: 2 to 4 adjustable by spring tension

Function: Closing speed, backcheck, latching

Cover: Radiused cover

Maximum door width: 1,100 mm

Maximum door weight: 80 kg

Arm application: Fig 1, Fig 6 and Fig 61 fixing positions

Successfully type tested for conformity to all the requirements of BS EN 1154:1997

- Door mount pull (Fig 1), door mount push (Fig 6), transom mount pull (Fig 61): 3 | 8 | 4/2 | 1* | 1 | 4

Included in a successful fire test to BS EN 1634 Part 1. Assessed for use on 30, 60 and 120 minutes timber fire doors and 240 minutes on steel fire doors.

CE Marked: AD0124, UKCA Marked: AD7683

Certifire approved: CF294, CE DOP: HUK0001, UKCA DOP: HUK0001-UK

The AR1500 can satisfy the opening force recommendations of BS 8300 and ADM when fitted in Fig 1 to a door with minimum width of 938 mm according to third party data. However other installed hardware, door seals and differential air pressure will affect the products as fitted performance meaning that the door closer alone cannot allow compliance to BS 8300 and ADM.

Cover finish: Satin Stainless Steel

Maximum door width: 1100 mm

Shape: Slimline

Power size: 2 to 4

Mechanism function: Backcheck, spring adjustment, closing/latching speed

Maximum door weight: 80 kg

Mechanism type: Rack & pinion

Door type: wooden door

Arm finish: RAL 9017 traffic black (ebony black)

Fixings: Timber door

Arm application: figure 1, 6 and 61

Mechanism dimensions and fixing centres: 248x45x53.5 mm; centres 225x20 mm

Opening Angle: max. 105° opening

Arm type: Scissor arm, fixed joint, flat form, adjustable

Product Data Sheet Links
