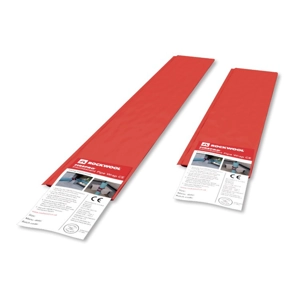

FirePro Intumescent Pipe Wraps CE are tested to BS EN 1366-3:2009 and CE marked.  They are supplied in lengths to suit various pipe diameters designed to protect both plastic pipework and electrical trunking in fire rated walls and floors, making them a highly adaptable product for many construction projects. Manufactured from layers of a graphite-based intumescent sheet encased in a polythene sheath, this design is able to fit most trunking sizes with the product wrapped around the outside of the pipework and fixed in places with self-adhesive strips. Should a fire occur, ROCKWOOL Intumescent Pipe Wrap CE will expand to fill any void that is left behind by burnt-out plastic preventing the passage of flames and smoke. Installation must be completed to the manufacturer’s instructions.

Accreditations:

• Complies to EN 1366-3:2009
• CE Marked to EAD 350454-00-1104 - ETA 20/1125
• 3rd party certified through UL-EU
• High performance intumescent
• Up to EI120 fire resistance
• Easy to install
• Suitable for rigid/flexible wall and rigid floor constructions
• Tested in conjunction with Ablative Coated Batt seals
• Maintenance free
• Dry system

Product Properties

Density: 1.2g/cm³

Storage: Shelf life - N/A if stored indoors in a cool, dry, well ventilated area

Diameter of insulation fixing plate: Up to 250mm O.D.

Thickness: 2mm at 32mm, up to 12mm at 250mm

Application temperature: -5 to 40ºC

Fire resistance: Up to 2 hours


Product Data Sheet Links
Rockwool Pipe Wrap CE Data Sheet
Rockwool Pipe Wrap CE Safety Data Sheet
Rockwool UL-EU Certificate-UL-EU-01207-CPR
Rockwool ETA-20-1125
Certificate of Constancy of Performance 2531-CPR-CXO10262
