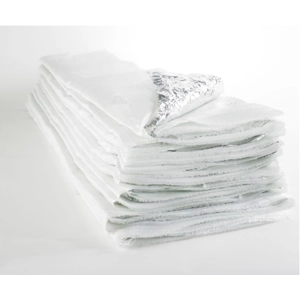

127cm x 6m. Integrity and Insulation 30:30 minutes is a non rigid fire barrier designed to provide compartmentation of larger concealed spaces (extensive cavities) within a building.
By offering 30 minutes integrity and 30 minutes insulation, APOLLO LIT 30:30 exceeds the minimum requirements relating to Cavity Barriers as detailed in the UK Building Regulations: Approved Document B (Fire Safety). FIREFLY is manufactured using specially treated woven glass fibre fabrics. FIREFLY APOLLO LITE is lightweight and easy to install.
Use Areas
Used primarily in roof voids and lofts to achieve fire-rated compartmentation lines throughout a building.
Extensively used in social housing, care homes and healthcare, separating accommodation and living spaces.
Also used in larger areas within industrial, warehousing, food processing, data centres and offices to create required compartmentation zones.
Description Lightweight, non rigid Fire Barrier - Combined Insulation and Integrity
Certification Third Party Certified by IFCC. Certificate number: IFCC 1461
Application Vertical use only (see Apollo Horizontal 30:30 for alternative)
Key Benefits
- FIREFLY Apollo Lite 30:30 provides a combined 30 minutes Integrity and 30 minutes Insulation
- Maintains fire-rated compartmentation lines through roof voids and difficult to access areas where flexibility is an advantage
- Lightweight, flexible, easy to handle and cut
- Installer-friendly fire barrier system
- Fully tested to BS476 and independently certified by IFCC/Kiwa
- Reaction to fire Classification A1 (BS EN 13501:1)
- FIREFLY Apollo Lite 30:30 is supported by a full range of FIREFLY ancillary products (stainless steel staples, sealants, fixing, supports) to provide the ability to install a fully tested system
Properties
Description:
Non-toxic / user friendly / flexible / durable.
Easy to manipulate and cut to shape
Colour: White
Available in Black on request.
Coating: A chemical treatment to optimise thermal properties and help prevent fire migration.
Minimum Thickness: 6mm
Specifications
Exceeds 30 minutes Integrity and 30 minutes Insulation when tested to BS 476 parts 20/22:1987
Reaction to fire Classification A1 (BS EN 13501:1)
Assessment IFCC
Fields of Application covering extended drops, penetrations, ceiling systems, widths and installation requirements.
Classification
Tested to BS476 parts 6 and 7 pass (propagation and surface spread of flame)
Dimensions & Packaging
Width: 127cm
Roll Length: 6 linear metres
Roll Area: 7.62 square metres
Packed: Concertinaed and individually wrapped in polythene
Minimum Weight: 1.44 kg / m2
Data Sheets
Firefly Apollo Lite Data Sheet
Firefly Apollo Lite Safety Data Sheet
Firefly Installation Guide
Firefly Apollo Lite Fields Of Application
Firefly Aplollo Lite IFC Certification
Firefly Product Summary
Installation Drawings
A-001 General Assembly
A-003 Side Fixing
A-004 Top Fix Timber Truss
A-005 Timber Penetrations
A-008 Vertical Butt Joint
A-009 Horizontal Butt Joint
