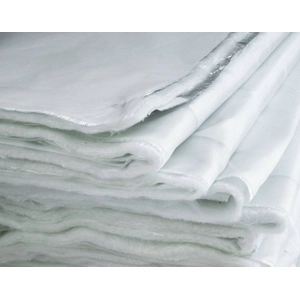

FIREFLY Zeus Horizontal 60:30 is a lightweight flexible fire barrier designed to provide fire compartmentation of larger concealed spaces and voids within buildings, offering 60 minutes Integrity and 30 minutes Insulation. Specifically designed and tested for Horizontal application.

Use Areas

Commonly installed to provide fire protection below mezzanine floors and balcony structures.

Also used in conjunction with the relevant Vertical barrier to create the Horizontal element of protected zones.

Utilised within roof voids and lofts to achieve fire-rated compartmentation lines throughout a building, in applications including social housing, care homes, healthcare and industrial/commercial buildings.

Construction

FIREFLY Zeus Horizontal 60:30 is manufactured using layers of aluminium, woven and nonwoven glass fibre, specially treated with a proprietary coated to greatly increase fire resistance.

Key Benefits

• FIREFLY Zeus Horizontal 60:30 provides a combined 60 minutes Integrity and 30 minutes Insulation, tested in a Horizontal application specifically.
• Maintains fire-rated compartmentation lines through roof voids and difficult to access areas where flexibility is an advantage.
• Lightweight, flexible, easy to handle and cut.
• Installer-friendly fire barrier system.
• Fully tested to BS476 and independently certified by IFCC/Kiwa.
• FIREFLY Zeus Horizontal 60:30 is supported by a full range of FIREFLY ancillary products (stainless steel staples, sealants, fixing, supports) to provide the ability to install a fully tested system.

Certification

Third party certified by IFCC/Kiwa. Certificate number: IFCC 1532

Application

Horizontal use only (see Zeus Lite 90:30 for vertical alternative)

Properties

Description: Non-toxic, user-friendly, flexible, durable. Easy to manipulate and shape

Coating: Chemical treatment to optimise thermal properties and help prevent fibre migration

Min Thickness: 10mm

Specifications

Exceeds 60 minutes Integrity and 30 minutes Insulation when tested to BS 476 parts 20/22:1987

Assessment IFCC

Fields of Application covering ceiling systems, widths and installation requirements

Classifications

Tested to BS 476 parts 6 and 7 – Pass (propagation and surface spread of flame)

Dimensions & Packaging

Width: 130cm

Roll Length: 6 linear metres

Roll Area: 7.8 sqm

Packed: Concertinaed and individually wrapped in polythene

Weight: 2.2kg/m2 minimum

Product Data Sheet Links
FIREFLY Zeus Horizontal Data Sheet

FIREFLY Zeus Horizontal Material Safety Data Sheet

FIREFLY Zeus Horizontal IFC Certification

FIREFLY Zeus Horizontal Product Summary

FIREFLY Zeus Horizontal Ancillaries & Fixings
