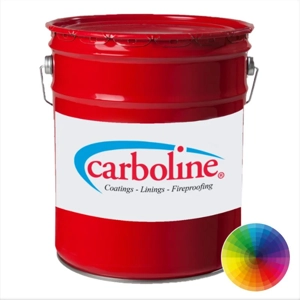

Carboline Thermaline 4900 5L
Carboline Thermaline 4900 5L
Thermaline 4900 Air-dried coating available in colors and suitable for 450°F (232°C) high temperature exposures. Air-drying characteristics allow for faster handling of in-shop applications than with other high-temperature coatings. Heat cure above 300°F (149°C) is recommended and will impart added strength and integrity to the coating.
Product Features
- 450°F (232°C) Temperature resistance
- Single-coat application
- Excellent resistance to thermal shock
- Good weathering and color stability
| Color | Grey (C705) and White (1864) A wide range of colors is available upon request using Carboline’s Rapid Tint System (RTS). Contact your Carboline representative for RTS color availability. |
| Finish | Semi-Gloss |
| Primer | • Self-priming on stainless steel, aluminum and metalized surfaces. • For carbon steel, apply over a recommended inorganic zinc or Thermaline Heat Shield. • A mist coating may be required to minimize bubbling over inorganic zinc primers. |
| Dry Film Thickness | 1.5 - 2 mils (38 - 51 microns) per coat Don't exceed 2.5 mils (63 microns) in a single coat. Excessive film thickness over inorganic zincs may increase damage during shipping or erection. |
| Solids Content | By Volume 40% +/- 2% |
| Theoretical Coverage Rate |
642 ft²/gal at 1.0 mils (15.7 m²/l at 25 microns) 428 ft²/gal at 1.5 mils (10.5 m²/l at 38 microns) 321 ft²/gal at 2.0 mils (7.9 m²/l at 50 microns) Allow for loss in mixing and application. |
| VOC Value(s) | Thinner 25 : 22 oz/gal (17%): 4.8 lbs/gal (581 g/l) Thinner 235 : 22 oz/gal (17%): 4.8 lbs/gal As Supplied : 4.4 lbs/gal (528 g/l) Thinner 25 : 8 oz/gal (6%): 4.6 lbs/gal (550 g/l) These are nominal values and may vary slightly with color. |
| Dry Temp. Resistance | Continuous: 450°F (232°C) |
| Topcoats | Not Applicable |
Data Sheets
Thermaline 4900 PDS
Thermaline 4900 (fka Thermaline 4900 R) SDS
