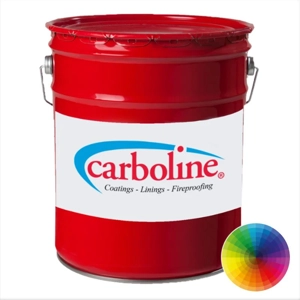

Carboline Carboguard 890 LT GF RAL 7035 5L Kit
Carboline Carboguard 890 LT GF RAL 7035 5L Kit
A glass reinforced chemically resistant epoxy coating with wide versatility in all industrial markets. It is self-priming. Glass reinforcement improves internal film strength, hardness, impact, and abrasion resistance. It is often used in severe service above the water line in marine applications where these resistance qualities are desired.
Product Features
• Excellent chemical resistance
• Surface tolerant characteristics for less severe applications
• Conventional and low-temperature versions
• Self-priming and primer/finish capabilities
• Excellent abrasion resistance & hardness
• VOC compliant to current AIM regulations
• Non-skid service with optional fillers
| Color | C900 (Black), S800 (White), C703 (Grey), C705 (Light Grey), 0500 (Tile Red), 5555 (Safety Red), 0200 (Tan), 6666 (Safety Yellow), 1675 (Ignition Yellow) Other colors may be available on request. Contact your Carboline Representative for availability. |
| Finish | Flat |
| Primer | Normally self-priming. May be applied over Carboguard 890 and other epoxy primers. |
| Dry Film Thickness | 8 - 20 mils (203 - 508 microns) per coat |
| Solids Content | By Volume 81% +/- 2% |
| Theoretical Coverage Rate | 1299 ft²/gal at 1.0 mils (31.9 m²/l at 25 microns) 162 ft²/gal at 8.0 mils (4.0 m²/l at 200 microns) 65 ft²/gal at 20.0 mils (1.6 m²/l at 500 microns) Allow for loss in mixing and application. |
| VOC Values | As Supplied : 1.4 lbs/gal (168 g/l) Thinner 213 : 13 oz/gal: 1.84 lbs/gal (221 g/l) Thinner 2 : 13 oz/gal: 1.9 lbs./gal (230 g/l) Thinner 33 : 16 oz/gal: 2.1 lbs/gal (248 g/l) Use Thinner 76 up to 16 oz per gallon where on-photochemically reactive solvents are required. |
| Dry Temp. Resistance | Continuous: 250°F (121°C) Non-Continuous: 300°F (149°C) Discoloration and loss of gloss observed above 200°F (93°C) |
| Limitations | Do not apply over acrylic or alkyd coatings. Carboguard 890 LT should not be used for immersion and it is suggested to be used as a primer and/or intermediate coat due to discoloration during cure. If discoloration is objectionable it may be top coated. Epoxies may lose gloss, discolor and chalk when exposed to sunlight. |
| Topcoats | May be coated with acrylics, epoxies or polyurethanes depending upon exposure and need. |
Data Sheets
Carboguard 890 LT GF PDS
Carboguard 890 LT GF (Carboguard 890 LT) MSDS Part B
Carboguard 890 LT GF (Carboguard 890) MSDS Part A
The above information is based on current test data, health and safety information and application instructions supplied by our suppliers and manufacturers of the products. It is supplied for guidance and to the best of our knowledge is true and accurate. Customers should satisfy themselves to the suitability of the products in its intended use and no guarantee is given or implied as the conditions of actual use are beyond our control. If in doubt the customer should consult the designer of the project or the local building control.
Fire Stopping Shop, disclaim any liability for loss, damage or other expense which may arise from the use of this information, data or products refereed to and reserve the right to amend or change any details without notice. This statement does not affect your statuary rights.
"
