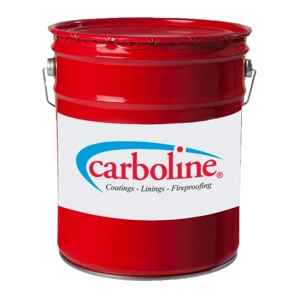

Carboline Carboguard 1340
Carboline Carboguard 1340
Penetrating primer/sealer for use on concrete substrates and Carboline Pyrocrete Fireproofing products. It performs extremely well in sealing cementitious surfaces and is designed to receive a variety of different generic types of finish coats. Some recommended uses of 1340 include the use as a curing compound or form release agent. When applied to “green” concrete it will retard the escape of moisture during the cure period. It is also excellent for use as a form release coating on plywood or steel forms.
Product Features
• Exceptional wetting characteristics
• Low stress, highly flexible film
• Very high solids
• Low odor
• User-friendly brush & roller application
• VOC compliant to current AIM regulations
Color | Clear Amber (0910) |
Finish | Gloss |
Primer | Self-priming. May be applied over most generic types of coatings. |
Dry Film Thickness | 1 - 2 mils (25 - 51 microns) per coat Product can be applied up to 4.0 mils (100 microns) for sealing rough surfaces or shot-blasted concrete. When used as a curing and/or form release agent, it may be applied up to 10.0 mils (250 microns) wet. |
Solids Content | By Volume 98% +/- 2% |
Theoretical Coverage Rate | 1572 ft²/gal at 1.0 mils (38.6 m²/l at 25 microns) 786 ft²/gal at 2.0 mils (19.3 m²/l at 50 microns) Allow for loss in mixing and application. |
VOC Values | As Supplied : 0.2 lbs/gal (24g/l) per EPA Method 24 Thinner 76 : 25 oz/gal = 1.3 lbs/gal (156 g/l) These are nominal values |
Dry Temp. Resistance | Continuous: 175°F (79°C) Non-Continuous: 200°F (93°C) |
Limitations | • EEpoxies may lose gloss, discolor and chalk when exposed to sunlight. • Do not use for immersion service. |
Topcoats | May be coated with Acrylics, Epoxies, or Polyurethanes depending on exposure and need. |
Data Sheets
Carboguard 1340 PDS
Carboguard 1340 SDS Part A
Carboguard 1340 SDS Part B
Carboguard 1340 VOC Emissions Test Certificate
